UP-IQRF IoT Starter Kit

This development tool is prepared for quick developing of your wireless IoT application.

Company info:

Name: IQRF Tech s.r.o.
Street: Prumyslova 1275
City: Jicin
Country: Czech Republic

Info about product

IQRF Interoperable

Category: development
Status: New
Manufacturer Name: AAEON Europe, IQRF Tech
HWPID: -1 (0xffffffffffffffff)
Product Version: 1
Power Supply: 5V DC-in @ 3A 5.5/2.1mm jack power input

Orders

https://iqrf.shop/

Content

DS-IOT-01 (e-shop)

IQRF set for wireless connectivity

Sensor kit DDC-SE-01 is intended to measure temperature, light intensity and voltage selected by the potentiometer.
Relay kit DDC-RE-01 enables to switch connected equipment on/off using two relays inside.
These kits are controlled by DPA commands implemented in Custom DPA handlers delivered with the set. The handlers specify HWP identification (HWPID) to individual kits which allows their identification.
DS-IOT-01 devices can be connected via the adapter to the UP board and then to any cloud. The gateway as well as the cloud can be adapted for communication with IQRF devices utilizing their HWPIDs.

Components

4 x DCTR-72DAT – IQRF transceiver
CK-USB-04A – IQRF programmer and debugger
3 x DK-EVAL-04A – Universal portable development kit for TR modules
DDC-SE-01 – IQRF evaluation and development kit
DDC-RE-01 – IQRF evaluation and development kit
KON-RASP-01 – Adapter to connect IQRF transceiver to UP board
CAB-USBABMICRO – Micro USB cable 18.5 cm
USB flash drive – Software and documentation (including HWPs and Custom DPA handlers)

UP board 2GB + 32 GB eMMC memory (e-shop)

The 40 Pin I/O connector, the USB 3.0 OTG, the Gigabit Ethernet, the HDMI and more other features make it a perfect solution for different domains and products like Robotics, Drone, Machine Vision, Smart Home, Education, Digital Signage, Intelligent Cars, Internet Of Things. The compatibility with Linux, Android, and all the Windows 10 distributions give you great flexibility, scalability and quick time to market.

Consists of:

Intel® Atom™ x5 Z8350 Processor 64 bit - up to 1.92GHz
Intel® HD 400 Graphics ,12 EU GEN 8, up to 500MHz Support DX*11.1/12, Open GL*4.2, Open CL*1.2 OGL ES3.0, H.264, HEVC(decode), VP8
2GB DDR3L system memory, 32GB eMMC storage capacity
4 x USB2.0 external connector, 2 x USB2.0 port (pin header), USB 3.0 port (OTG)
1 x Gb Ethernet (full speed) RJ-45
HDMI video output
DSI / eDP display interface
MIPI-CSI camera interface
5V DC-in @ 3A 5.5/2.1mm jack power input

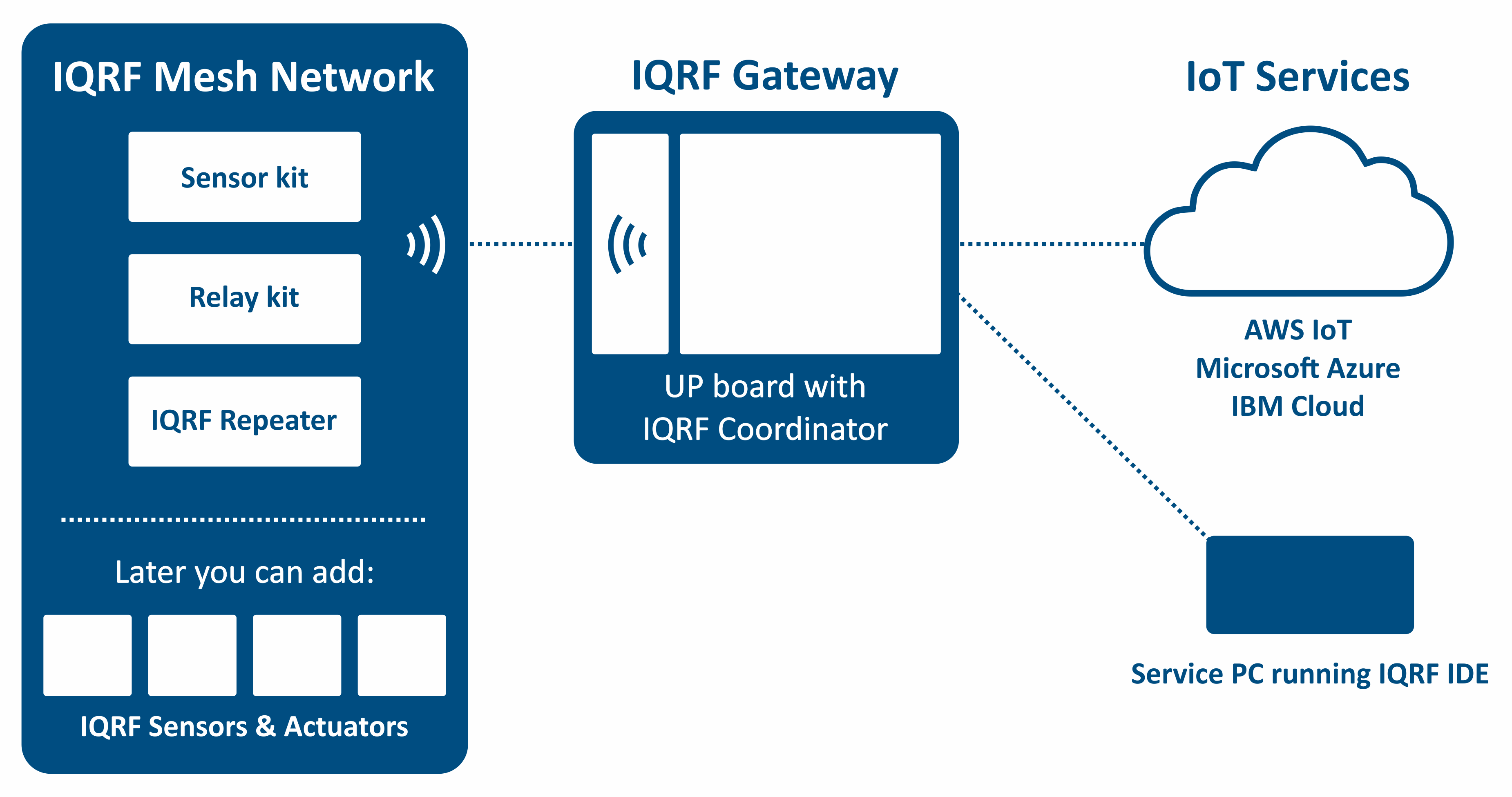

Architecture

UP board is connected to the IQRF network via SPI interface (adapter) or via CDC interface (GW-USB/CK-USB).

You can find installation steps in documentation on https://github.com/iqrfsdk/iot-starter-kit.

There is the IQRF Daemon prepared for easy communication between IQRF network and other platforms. Follow the steps to install it to UP.

IQRF Daemon has several communication channels (UDP, MQTT, MQ) allowing it to be easily connected to a 3rd party local or remote services and applications (e.g. Microsoft Azure, Node-RED Dashboard, remote control from RehiveTech etc.).

You can also connect to your IQRF network ready HW extensions as sensors and actuators.
