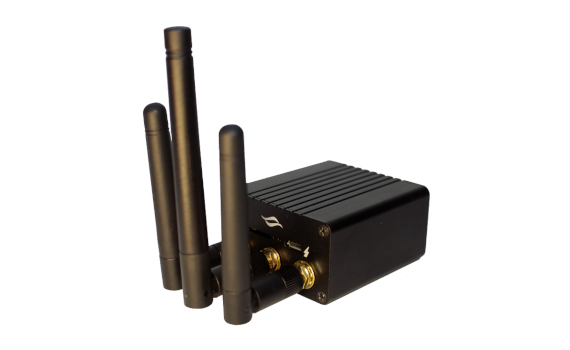

Ready to use small IoT gateway with all hardware and software equipment prepared to use for fast deployment of your IoT solutions. Same as original AuroraHub IoT Gateway but with LoRa extension module integrated together with IQRF. More information about IQRF and LoRa cooperation here.

This powerful IoT gateway comes with a standard Linux based operating system (Debian). Moreover, pre-installed and preconfigured IQRF software, client for PIXLA remote management system and web-based configuration tool for Internet connectivity (LAN, WiFi, etc.) is also present. Running other custom software is possible and based on customer requests.

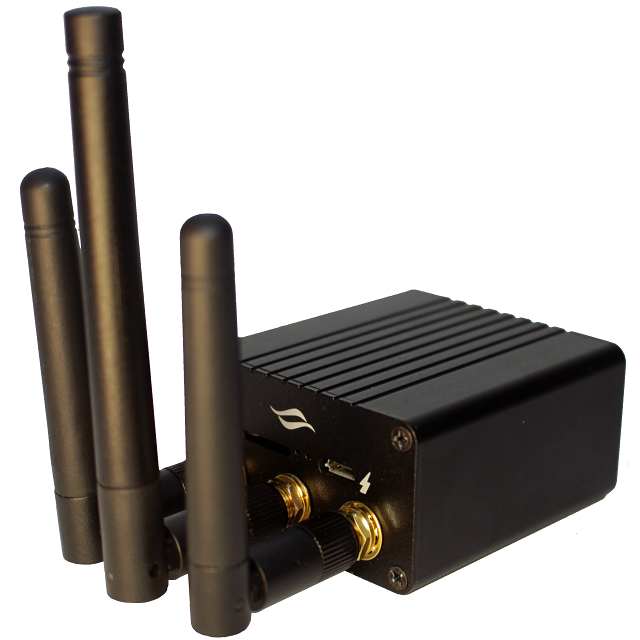

IoT gateway comes in a black aluminum box (IP30 - outdoor kit with IP67 also available) with passive cooling. The hardware inside is running 64bit state-of-the-art embedded processor with 4 cores (Cortex-A53). It is equipped with:

• 512 MB of DDR3 RAM,
• 8 GB onboard eMMC memory for system and user data storage,
• microSD card slot for other data storage,
• full gigabit (10/100/1000) interface,
• Wi-Fi (b/g/n) interface,
• Bluetooth 4.0 interface,
• IQRF interface,
• two USB 2.0 ports

Combo omnidirectional antenna for Wi-Fi/Bluetooth and second one antenna for IQRF are connected via standard SMA connector (i.e. possible to use other types of antennas). Third available for Z-Wave antenna or LoRa antenna.

This IoT gateway is a fully fanless solution and also comes with high-quality power supply (EU/US and other connectors available) and cable that both guarantees enough power to operate at maximal speed without any problems.
